GLC-SX-MMD Compatible GbE SFP Module 1.25G 850nm Multimode 550m LC Duplex

Description Of Fiber Optic Transceiver

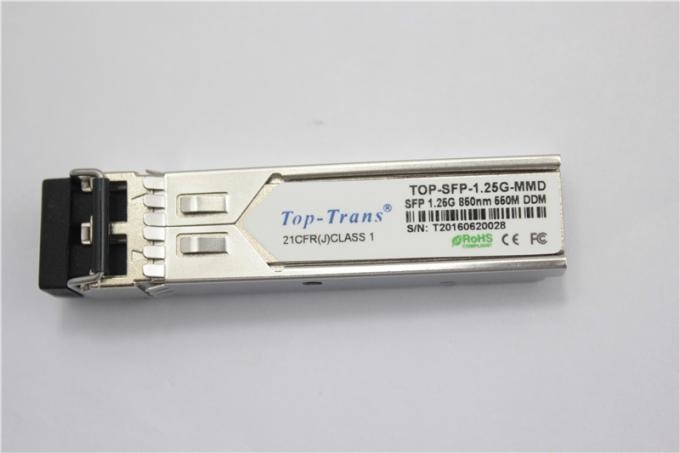

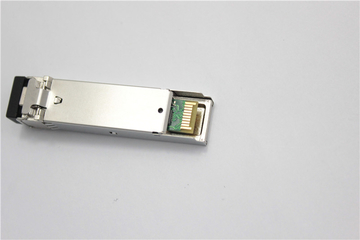

This TSFP-1.25G-MMD Transceiver is designed as the alternative choice for Cisco GLC-SX-MMD SFP module on Gigabit network. This Gigabit SFP Multimode Transceiver features a hot-pluggable MSA SFP interface and an LC Duplex connector. This Gigabit SFP Multimode Transceiver supports the data link speed of 1.25Gbps. This Gigabit SFP Multimode Transceiver allows the max transmission distance of up to 550 meters via OM4 MMF. This Gigabit SFP Multimode Transceiver is fully compliant with MSA SFP and IEEE 802.3z.

This Gigabit SFP Multimode Transceiver is well programmed with Cisco compatibility to enable the functionality on Cisco Catalyst & Nexus etc Series switches, routers etc. All SFPs will pass the compatibility test through the on-site equipment before delivery.

Specification Of Fiber Optic Transceiver

Feature Of Fiber Optic Transceiver

• Transceiver unit with independent

• VCSEL laser transmitter and PIN photo-detector

• Up to 1.25Gbps data rate operation

• Up to 550M transmission distance at 1.25Gbps

• Standard serial ID information compliant with SFP MSA

• SFP MSA package with duplex LC connector

• Digital Diagnostic Monitor Interface

• Very low EMI and excellent ESD protection

• +3.3V single power supply

• RoHS compliant

• Case operating temperature:

• Commercial: 0°C to +70°C

• Extended: -10°C to +80°C

• Industrial: -40°C to +85°C

Application of Fiber Optic Transceiver

• Gigabit Ethernet

• Enterprise, Data Center, Security Network

​

SFP Transceiver List

FAQ

• Can I use your 1.25G Multimode SFP with other brand SFP?

Yes, It can interoperate with other brand 1.25G Multimode SFP

However, It's cisco compatible SFP.

Please take care the compatibility of other brand SFP

• What's your optic warranty terms?

​

1 year free replace, 3 years free repairment for non-human made hardware defects

• What if I find your optics are not satifiying with our fiber link, occurs critical signal losses?

Our optics are made up of fresh new components through strict QC control on digital & optical parameters, link performance and reliability tests through error detectors, eye diagrams and Industrial ovens. The qualification ratio is over 99.9%. If any quality defects occur within the warranty, we will arrange the replace/repair service immediately.
