Original SFP Module

Dell 100G QSFP28 SR4 Optical Module Transceiver FTLC9555REPM3-E6  Fiber Type Single mode Weight 0.06kg Warranty 1 year Tx power -8.4 to +2.4 dBm Rx sensitivity -10.3 to +2.4 dBm Extinction Ratio 2.0dB Power Consumption 2.5W Single Power Supply 3.5V   PRODUCT BASICS • QSFP28 module form factor, per SFF-8665  • Standard interfaces defined by IEEE 802.3bm  • 4x25G parallel optics architecture  • 4x25G retimed electrical I/O (CAUI-4)  • 100m reach on OM4 MMF and 70m on OM3, assuming RS-FEC on

100m Parallel MMF 100G QSFP28 Optical Module Transceiver FTLC9551REPM-FC  Fiber Type Single mode Weight 0.06kg Warranty 1 year Tx power -8.4 to +2.4 dBm Rx sensitivity -10.3 to +2.4 dBm Extinction Ratio 2.0dB Power Consumption 1.3W Single Power Supply 3.5V   FTLC9551REPM-FC QSFP28 Module Features  Hot-pluggable QSFP28 form factor   Supports 103.1Gb/s aggregate bit rate   Power dissipation < 3.5W   RoHS-6 compliant   Commercial case temperature range of 0°C to 70°C   Single

Intel AFBR-703SDZ-IN2 SFP Original Optical Transceiver Dual Rate 10G  Fiber Type Single mode Weight 0.03kg Warranty 1 year Tx power -6.00 to -1.00 dBm Rx sensitivity -11.1 to -1.00 dBm Extinction Ratio 2.0dB Power Consumption 2.5W Single Power Supply 3.3V   AFBR-703SDZ-IN2 Features  • Operating Data Rate up to 10.3Gbps  • Single 3. 3V Power Supply and TTL Logic Interface  • Hot Pluggable  • 850nm VCSEL Transmitter  • Reach: OM1 (62.5/125micron) 33m OM2 (50/125micron 400 MHz*km)

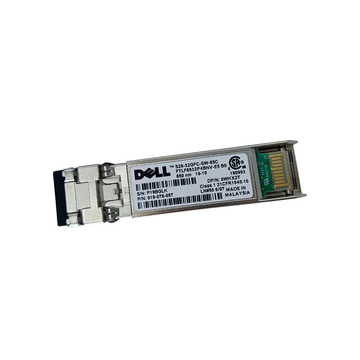

Dell 32G Compliant Short Wavelength SFP+ Module Transceiver FTLF8532P4BNV-E5 FTLF8532P4BNV-E5 SFP+ Module  Features  Up to 28.05 Gb/s bi-directional data links   Hot-pluggable SFP+ footprint   Built-in digital diagnostic functions  850nm Oxide VCSEL laser transmitter   Duplex LC connector   RoHS compliant   100m over M5F MMF (50/125 um OM4)   70m over M5E MMF (50/125um OM3)   20m on 50m (OM2) MMF   Metal enclosure, for lower EMI   Single 3.3V power supply   Operating temperature range: 0°C to 85°C

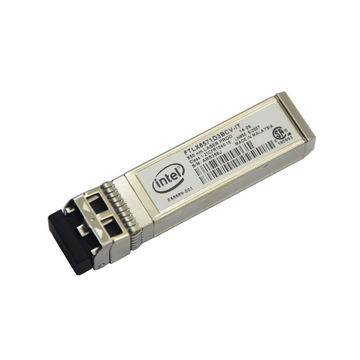

INTEL FTLX8571D3BCV-IT 10GB/s 850nm Original Optical Transceiver Module  Fiber Type Single mode Weight 0.03kg Warranty 1 year Tx power -2.20 to +2.0dBm Rx sensitivity -2.20 to +2.0 dBm Extinction Ratio 3.0dB Power Consumption 1.5W Single Power Supply 3.3V   FTLX8571D3BCV-IT Features   Hot-pluggable SFP+ footprint   Supports 9.95 to 10.3 Gb/s bit rates*   Power dissipation < 1W   RoHS-6 compliant (lead-free)   Commercial temperature range 0°C to 70°C   Single

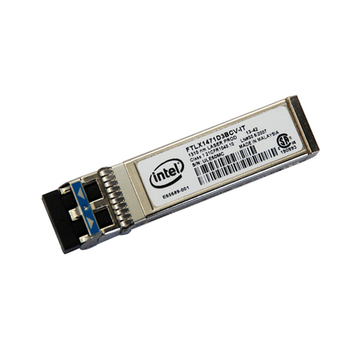

Intel FTLX1471D3BCV-IT SFP Original Optical Transceiver Module  Fiber Type Single mode Weight 0.03kg Warranty 1 year Tx power -8.20 to +0.5dBm Rx sensitivity -14.2 to +0.5 dBm Extinction Ratio 3.5dB Power Consumption 1.5W Single Power Supply 3.3V   FTLX1471D3BCV-IT Features   Hot-pluggable SFP+ footprint   Supports rate selectable 1.25 Gb/s or 9.95 to 10.3 Gb/s bit rates   Power dissipation < 1W   RoHS-6 compliant (lead-free)   Commercial temperature range -5°C to 70°C

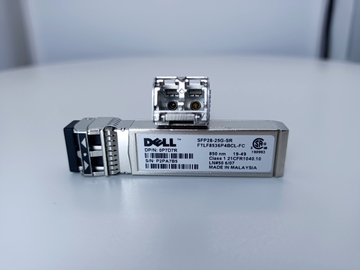

DELL FTLF8536P4BNL-E5 25Gb/s 850nm Short Wavelength SFP+ Transceiver   Fiber Type Single mode Weight 0.06kg Warranty 1 year Tx power -9.0 to +2.0 dBm Rx sensitivity -12.0 to +2.0 dBm Extinction Ratio 3.5dB Power Consumption 1.3W Single Power Supply 3.3V   FTLF8536P4BCL-E5 SFP+ Module Features  Up to 25.78 Gb/s bi-directional data links   Hot-pluggable SFP+ footprint   Built-in digital diagnostic functions   850nm Oxide VCSEL laser transmitter   Duplex LC connector

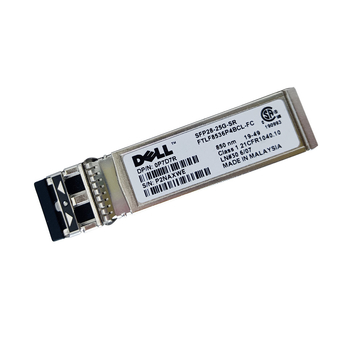

Dell 25Gb/s RoHS Compliant Short Wavelength SFP+ Transceiver FTLF8536P4BCL-FC   Fiber Type Single mode Connector Duplex LC Lasers VCSEL Tx power -9.0 to +2.0 dBm Rx sensitivity -12.0 to +2.0 dBm Extinction Ratio 3.5dB Power Consumption 1.3W Single Power Supply 3.3V   FTLF8536P4BCL-FC SFP+ Module Features  Up to 25.78 Gb/s bi-directional data links   Hot-pluggable SFP+ footprint   Built-in digital diagnostic functions   850nm Oxide VCSEL laser transmitter   Duplex LC connector

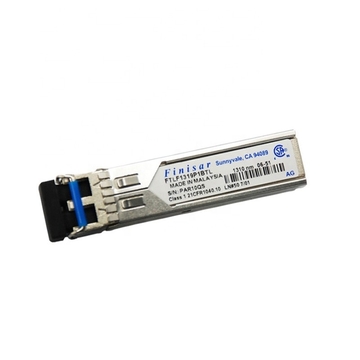

Finisar SFP FTLF1319P1BTL 2.13Gbps 1310nm 10km fiber optic module pon otdr PRODUCT FEATURES  • Up to 2.125Gb/s bi-directional data links • Hot-pluggable SFP footprint • Built-in digital diagnostic functions • 1310nm Fabry-Perot laser transmitter • Duplex LC connector • RoHS compliant and Lead Free • No Rate Select input required for Fibre Channel 1x/2x Operation • Up to 10 km on 9/125μm SMF • Metal enclosure, for lower EMI • Single 3.3V power supply • Low power dissipation <700mW typical • Industrial operating temperature
