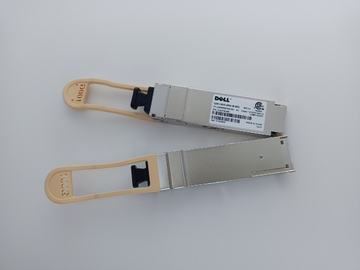

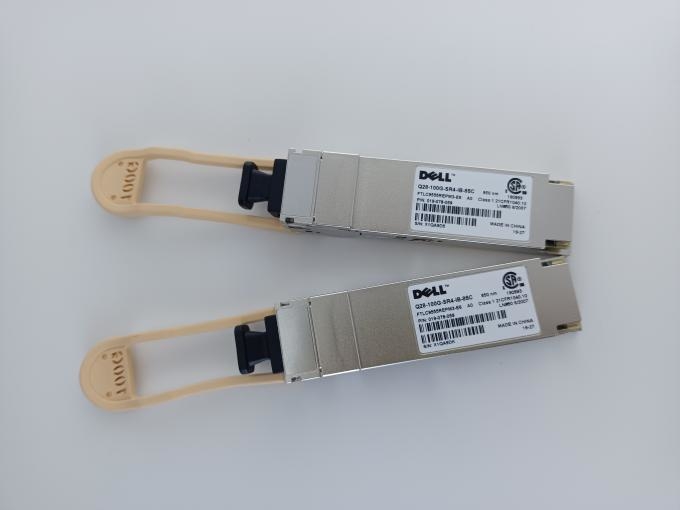

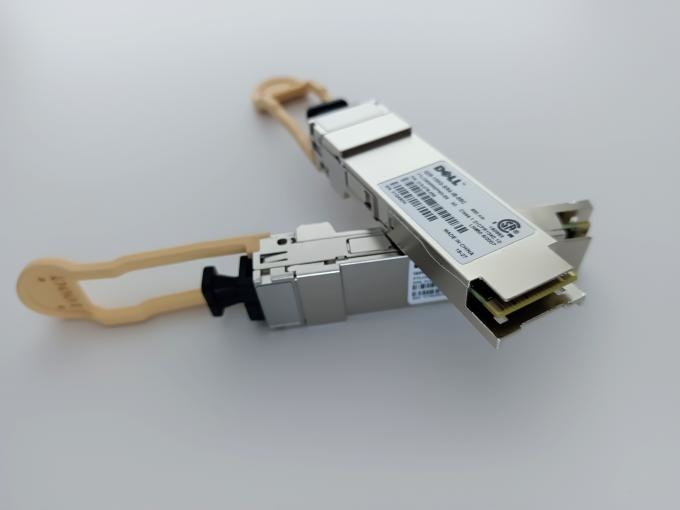

Dell 100G QSFP28 SR4 Optical Module Transceiver FTLC9555REPM3-E6
| Fiber Type | Single mode |
| Weight | 0.06kg |
| Warranty | 1 year |
| Tx power | -8.4 to +2.4 dBm |
| Rx sensitivity | -10.3 to +2.4 dBm |
| Extinction Ratio | 2.0dB |
| Power Consumption | 2.5W |
| Single Power Supply | 3.5V |
PRODUCT BASICS
• QSFP28 module form factor, per SFF-8665
• Standard interfaces defined by IEEE 802.3bm
• 4x25G parallel optics architecture
• 4x25G retimed electrical I/O (CAUI-4)
• 100m reach on OM4 MMF and 70m on OM3, assuming RS-FEC on the host
• Maximum power dissipation <2.5W
• Extended temperature range
• Pre-FEC BER: 5E-5
• I2C management interface (same as QSFP+)
PRODUCT FEATURES
• Finisar VCSEL and PIN arrays to ensure high quality optics
• Can be used to fan-out to four shortwave 25GE SFP28 modules
• Carries both Ethernet and CPRI traffic • CPRI capability includes eCPRI
Applications
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What is the operating temperature range of optical modules?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
