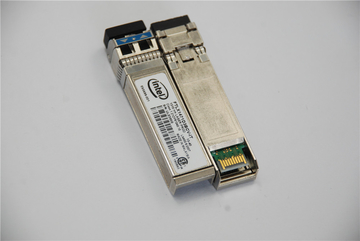

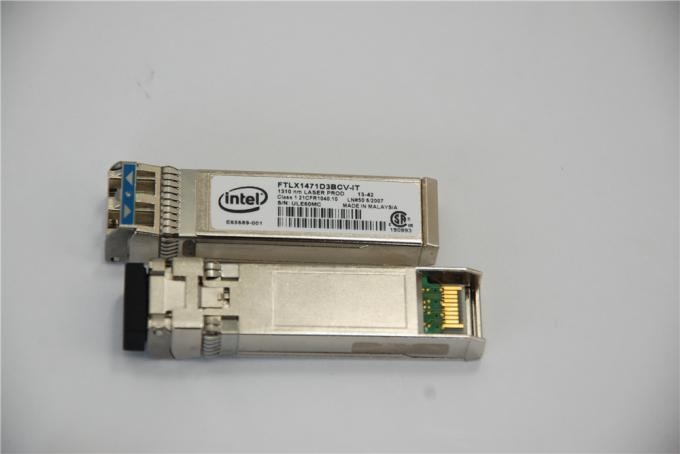

Intel FTLX1471D3BCV-IT SFP Original Optical Transceiver Module
| Fiber Type | Single mode |
| Weight | 0.03kg |
| Warranty | 1 year |
| Tx power | -8.20 to +0.5dBm |
| Rx sensitivity | -14.2 to +0.5 dBm |
| Extinction Ratio | 3.5dB |
| Power Consumption | 1.5W |
| Single Power Supply | 3.3V |
FTLX1471D3BCV-IT Features
APPLICATIONS
FTLX1471D3BCV-IT description
FTLX1471D3BCV-IT 10G SFP+ transceivers are designed for use in 1-Gigabit and 10-Gigabit Ethernet links up to 10km over singlemode fiber.
They are compliant with SFF-84311 , IEEE 802.3-2005 10GBASE-LR/LW2 and 1000BASE-LX3 .
Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-84724 .
This product is for applications specifically designed for 10G SFP+ ports and 1G/10G SFP+ ports and not native 1G SFP ports.
The FTLX1471D3BCV is a “limiting module”, i.e., it employs a limiting receiver.
Host board designers using an EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperating the hostboard EDC PHY with a limiting receiver SFP+ module.
FAQ
Q1. Are your Optical Transceivers original?
A1.Yes, all our optical transceivers are guaranteed 100% original!
Q2.How do you guarantee the quality of SFP?
A2.We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
Q3. What is the operating temperature range of optical modules?
A3: Commercial temperature range(COM) : 0 to 70°C(32 to 158°F)
Extended temperature range(EXT):-5 to 85°C(23 to 185°F)
Industrial temperature range(IND)::-40 to 85°C(-40 to 185°F)
Storage temperature range:-40 to +85°C(-40 to 185°F)
Q5. What are the trade terms?
A5.Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Alipay, Escow, Money Gram
Warranty: 1 Year
