Finisar Optical Transceiver

Original Finisar FTLC1154RDPL 10km 100GBASE-LR4 QSFP28 Optical Transceiver Module Features:• Hot-pluggable QSFP28 form factor• Supports 103.1Gb/s aggregate bit rate• Power dissipation < 3.5W• RoHS-6 compliant• Commercial case temperature range of 0°C to 70°C• Adaptive CTLE• Single 3.3V power supply• Maximum link length of 10km on Single Mode Fiber (SMF)• 4x25Gb/s DFB-based LAN-WDM transmitter• 4x25G retimed electrical interface• Duplex LC receptacles• I2C management interface FINISAR Compatible FTLC1151RDPL Applications:• 100GBASE-LR4 100G Ethernet  FINISAR Compatible

Finisar FTLC1154RDPL Optical Module 100GBASE-LR4 10km Gen2 QSFP28 1310nm  Parameters Fiber Type   10GBASE-LR4Ethernet Connector LC Lasers and TIA VCSEL and PIN Tx Power -1.3-4.5 dBm Rx Sensitivity 4.5 dBm Extinction Ratio 4dbm Power Consumption 3.5W Single Power Supply 3.3 V    Finisar’s FTLC1154RDPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the QSFP28 MSA1 , IEEE 802.3ba 100GBASE-LR42 and IEEE 8

Original Finisar FTLC1152RGPL Optical Module 100G 10km eCWDM4 QSFP28 Optical Transceiver  Parameters Fiber Type   10GBASE-LR4Ethernet Connector LC Lasers and TIA VCSEL and PIN Tx Power -4-2.5 dBm Rx Sensitivity 2.5 dBm Extinction Ratio  3.5dbm Power Consumption 3.5W Single Power Supply 3.3 V    Finisar’s FTLC1152RGPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 2 km of single mode fiber. They are compliant with the QSFP28 MSA1 , CWDM4 MSA2 and

Original Finisar FTLC1152RGPL 100G CWDM4 SMF 2km MPO QSFP28 Optical Transceiver Parameters Fiber Type  10GBASE-LR4Ethernet Connector Dual-LC Lasers and TIA VCSEL and PIN Tx Power -4~2.5 dBm Rx Sensitivity -9.4 dBm Extinction Ratio  -11.5~-3.5 dbm Power Consumption 3.5W Single Power Supply 3.3~5 V  The FTLC1152RGPL is a 103 Gbps transceiver module designed for optical communication applications compliant to 100GBASE-CWDM4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25

Original Finisar FTLC1152RGPL2-G2 100G CWDM4 SMF 2km MPO QSFP28 Optical Transceiver Parameters Fiber Type  10GBASE-LR4Ethernet Connector LC Lasers and TIA VCSEL and PIN Tx Power -3 dBm Rx Sensitivity -9.4 dBm Extinction Ratio  -8.2~-8.8 dbm Power Consumption 3.5W Single Power Supply 3.3~5 V  Finisar FTLC1152RGPL2-G2 QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 2km over single mode fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal

Original FTLC1151RDPL Finisar Compatible (100GBase-LR4) 10km SMF Optical TransceiverFINISAR Compatible FTLC1151RDPL Quick SpecPart Number: FTLC1151RDPLFTLC1151RDPL-EXTFTLC1151RDPL-INDForm Factor: QSFP28TX Wavelength: 1310nmReach: 10kmCable Type: SMFRate Category: 100GBaseInterface Type: LR4DDM: YesConnector Type: Dual-LCOptical Power Budget: 7.3 dBTX Power Min/Max: -1.3 to 4.5 dBmRX Power Min/Max: -8.6 to 4.5 dBmFINISAR Compatible FTLC1151RDPL Features:• Hot pluggable QSFP28 MSA form factor• Supports 103 Gbps and 112 Gbps• Up to 10km reach for G.652 SMF• Single +3.3V power supply•

Original Finisar FTLC1151RDPL 100GBASE-LR4 10km Optical Transceiver Finisar’s FTLC1151RDPL QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links on up to 10km of single mode fiber. They are compliant with the QSFP28 MSA1 , IEEE 802.3ba 100GBASE-LR42 and IEEE 802.3bm CAUI-4 6 . Digital diagnostic functions are available via the I2C interface, as specified by the QSFP28 MSA and Finisar Application Note AN-21525 . The transceiver is RoHS-6 compliant per Directive 2011/65/EC3 and Finisar Application Note AN-20384 . PRODUCT FEATURES   Hot-pluggable QSFP28

Original Finisar FTLC9559REPM 100m Parallel MMF 100G QSFP28 Optical Transceiver for 100GBASE-SR4 100G Ethernet Parameters Fiber Type  100GBASE-SR4 100G Ethernet Connector LC Lasers and TIA VCSEL Tx Power -8.4~2.4 dBm Rx Sensitivity 3 dBm Extinction Ratio 2 dB Power Consumption 2.5W Single Power Supply 3.3 V  II-VI’s FTLC9559REPM 100G QSFP28 transceiver modules are designed for use in 100Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA1and IEEE 802.3bm 100GBASE-SR4 2

Finisar FTLC9558REPM Optical Module 100G QSFP28 850NM 100M 100GBASE-SR4 Parallel MMF  Parameters Fiber Type  10GBASE-LR4Ethernet Connector LC Lasers and TIA VCSEL and PIN Tx Power -3 dBm Rx Sensitivity -9.4 dBm Extinction Ratio  -8.2~-8.8 dbm Power Consumption 2.5W Single Power Supply 3.3~5 V    Finisar’s FTLC9558REPM 100G QSFP28 transceiver modules are designed for use in 100 Gigabit Ethernet links over multimode fiber. They are compliant with the QSFP28 MSA1 and IEEE 802.3bm 100GBASE-SR42

Finisar FTLF8528P3BCV 8G Module 8G Fibre Channel (8GFC) SFP+ 150m Parameters Fiber Type   100GBASE-LR4Ethernet Connector LC Lasers and TIA VCSEL and PIN Tx Power -8.2~0.5 dBm Rx Sensitivity -14.2~0.5 dBm Extinction Ratio 3 dB Power Consumption 1.5W Single Power Supply 3.3 V   Finisar’s FTLF8528P3BxV SFP+ transceivers are designed for use in Fibre Channel links up to 8.5 Gb/s data rate over multimode fiber. They are compliant with FC-PI-4 Rev. 8.00a and SFF-8472 Rev 11.0c , and compatible with

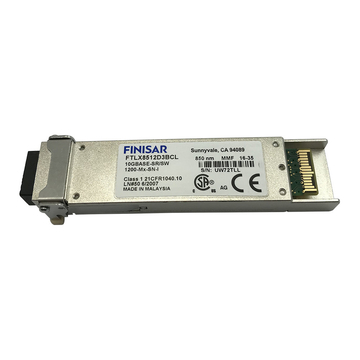

Finisar FTLX8512D3BCL XFP Optical Module 10G Optical Module Parameters Fiber Type   10GBASE-LR4Ethernet Connector LC Lasers and TIA VCSEL and PIN Tx Power -5--1 dBm Rx Sensitivity -11 dBm Extinction Ratio  9 dbm Power Consumption 1.5W Single Power Supply 3.3 V    Finisar’s FTLX8512D3BCL Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification1 . They comply with 10-Gigabit Ethernet 10GBASE-SR/SW per IEEE 802.3ae, 10G

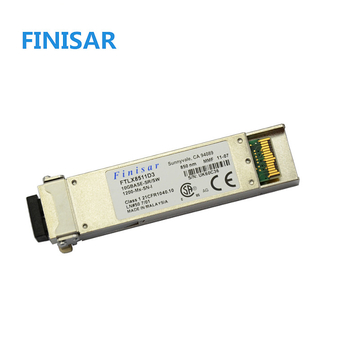

Finisar FTLX8511D3 10Gb/S 850nm Multimode Datacom XFP Optical Transceiver For 10GBASE-SR/SW 10G Ethernet  Finisar’s FTLX8511D3 Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-SR/SW per IEEE 802.3ae and 10G Fibre Channel 1200-Mx-SN-I. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC, and Finisar Application Note AN-2038. Finisar’s

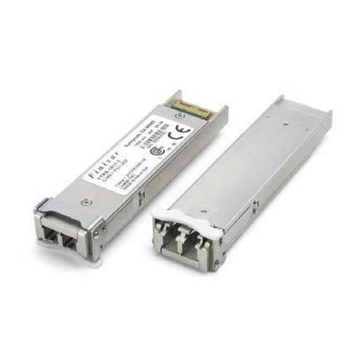

Original Finisar FTLX1811M3 XFP Module 10G ZR XFP 1550nm 80km Optical Module Parameters Fiber Type  10GBASE-LR4Ethernet Connector LC Lasers and TIA VCSEL and PIN Tx Power -1-2 dBm Rx Sensitivity -16 dBm Extinction Ratio  9 dbm Power Consumption 3.5W Single Power Supply 3.3 V  Finisar’s 80km FTRX-1811-3 Small Form Factor 10Gb/s (XFP) transceivers comply withthe current XFP Multi-Source Agreement (MSA) Specification1. They comply with 80kmSONET OC-192 and SDH STM-64 per ITU-T G.959.1 P1L1-2D2, and

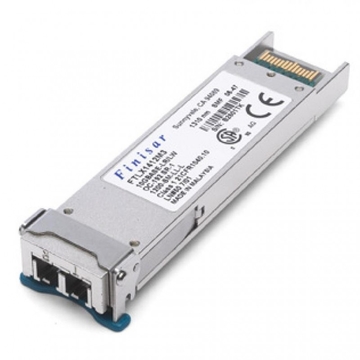

Finisar FTLX1413M3BCL 10G XFP 1310nm 10km Optical Module Parameters Fiber Type   10GBASE-LR4Ethernet Connector LC Lasers and TIA VCSEL and PIN Tx Power -5--1 dBm Rx Sensitivity -11 dBm Extinction Ratio  9 dbm Power Consumption 1.5W Single Power Supply 3.3 V    Finisar’s FTLX1413M3BCL Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification1 . They are a true multi-protocol transceiver complying with SONET OC-192 SR-1, SDH

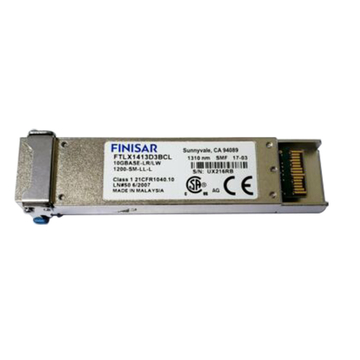

Original Finisar FTLX1413D3BCL XFP Optical Transceiver 10G XFP 1310nm 10km Parameters Fiber Type   10GBASE-LR4Ethernet Connector LC Lasers and TIA VCSEL and PIN Tx Power -5--1 dBm Rx Sensitivity -11 dBm Extinction Ratio  9 dbm Power Consumption 1.5W Single Power Supply 3.3 V    Finisar’s FTLX1413D3BCL Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification1 . They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802

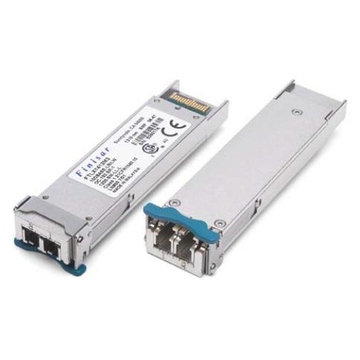

Finisar FTLX1413M3BCL 10G XFP 1310nm 10km Optical Module Parameters Fiber Type   10GBASE-LR4Ethernet Connector LC Lasers and TIA VCSEL and PIN Tx Power -5--1 dBm Rx Sensitivity -11 dBm Extinction Ratio  9 dbm Power Consumption 1.5W Single Power Supply 3.3 V    Finisar’s FTLX1412M3BTL Industrial Temperature Small Form Factor 10Gb/s (XFP)transceivers are compliant with the current XFP Multi-Source Agreement (MSA)Specification1. They comply with SONET OC-192 SR-1, SDH STM I-64.1,
