Parameters
| Fiber Type | 10GBASE-LR4Ethernet |
| Connector | Dual-LC |
| Lasers and TIA | VCSEL and PIN |
| Tx Power | -4~2.5 dBm |
| Rx Sensitivity | -9.4 dBm |
| Extinction Ratio | -11.5~-3.5 dbm |
| Power Consumption | 3.5W |
| Single Power Supply | 3.3~5 V |

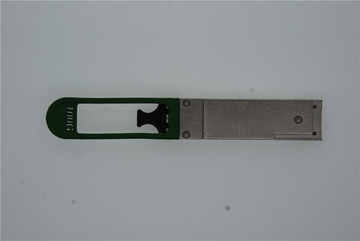

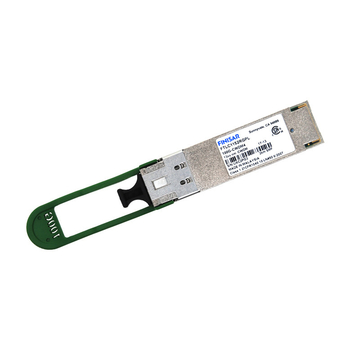

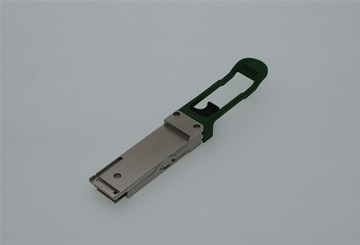

The FTLC1152RGPL is a 103 Gbps transceiver module designed for optical communication applications compliant to 100GBASE-CWDM4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25 Gbps electrical data to 4 optical CWDM channels and then multiplexes them into a single channel for 103 Gbps optical transmission. Reversely on the receiver side, the module de-multiplexes a 103 Gbps optical input into 4 channels of CWDM optical signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 LAN WDM channels are 1270, 1290, 1310 and 1330 nm as members of the CWDM wavelength grid. The high performance cooled DML DFB transmitters and high sensitivity PIN receivers provide superior performance for 100G applications up to 2km links.
Finisar Compatible FTLC1152RGPL Quick Spec:
Form Factor: QSFP28
TX Wavelength: CWDM4
Reach: 2km
Cable Type: SMF
Rate Category: 100GBase
Interface Type: CWDM4
DDM: Yes
Connector Type: Dual-LC
Optical Power Budget: 7.5 dB
TX Power Min/Max: -4.00 to +2.50 dBm
RX Power Min/Max: -11.50 to +3.50 dBm
Finisar Compatible FTLC1152RGPL
Features:
• Hot pluggable QSFP28 MSA form factor
• Supports 103 Gbps
• Up to 2km reach for G.652 SMF
• Single +3.3V power supply
• Transmitter: cooled 4x25 Gbps CWDM DML TOSA (1270, 1290, 1310, 1330nm)
• Receiver: 4x25 Gbps PIN ROSA
• 4x25G Electrical Serial Interface
• Maximum power consumption 3.5W
• RoHS-6 compliant (lead-free)
• Duplex LC receptacle
• I
2C interface with integrated Digital Diagnostic Monitoring
• Operating Case Temperature
o Standard 0 to +70 °C
o Industrial -40 to +85 °C
Finisar Compatible FTLC1152RGPL
Applications:
• 100GBASE-LR4 Ethernet links
Finisar Compatible FTLC1152RGPL Overview
The FTLC1152RGPL is a 103 Gbps transceiver module designed for optical communication applications compliant to
100GBASE-CWDM4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25 Gbps electrical data to
4 optical CWDM channels and then multiplexes them into a single channel for 103 Gbps optical transmission.
Reversely on the receiver side, the module de-multiplexes a 103 Gbps optical input into 4 channels of CWDM optical
signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 LAN WDM
channels are 1270, 1290, 1310 and 1330 nm as members of the CWDM wavelength grid. The high performance cooled
DML DFB transmitters and high sensitivity PIN receivers provide superior performance for 100G applications up to
2km links. The product is designed with form factor, optical/electrical connection and digital diagnostic interface per
the QSFP+ Multi-Source Agreement(MSA)
FAQ
1. Are your Optical Transceivers original?
Yes, all our optical transceivers are guaranteed 100% original!
2. What will you do if I found the product has any quality problem?
We back up every sale with our risk-free money-back guarantee! You can buy with confidence from a company in good faith that has been serving its clients for over 10 years!
3. What did your company do in terms of quality control?
We have professional testing equipment and QC team. Every unit will be fully tested with perfect performance before shipping.
4. What are the trade terms?
Lead Time: 1 day after confirm your payment (In stock, we need 1 day to fully test them)
Payment term: Western Union, T/T, Aliexpress Escow, Money Gram
Warranty: 1 Year
5. Do you have compatible ones?
Yes, we have our own brand—Toptrans, including SFP, XFP, SFP+, Bidi in all kinds of specifications.
