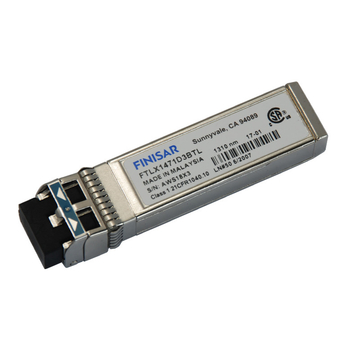

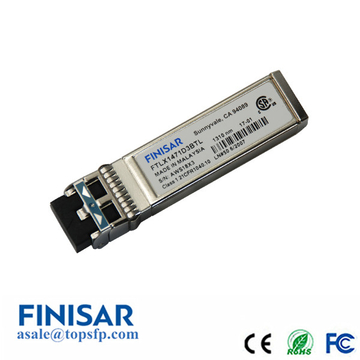

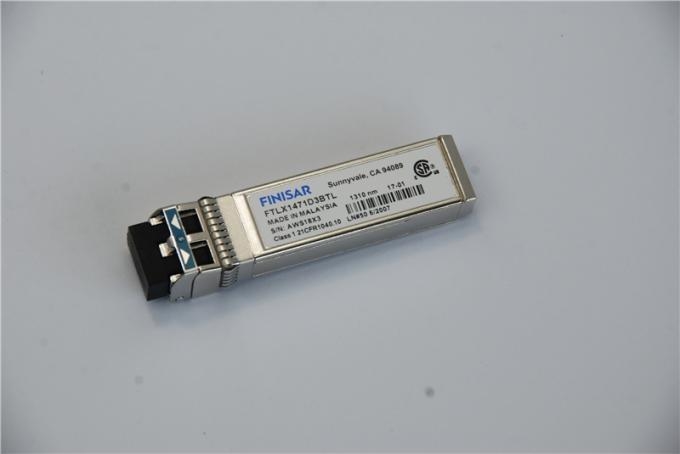

Finisar FTLX1471D3BTL Iindustrial Module 10G SFP Single Mode Optical Transceiver
FTLX1471D3BTL Optical Module Fetures:
• Hot-pluggable SFP+ footprint
• Supports 9.95 to 10.5Gb/s bit rates
• Power dissipation < 1W
• RoHS-6 compliant (lead-free)
• Industrial temperature range -40°C to 85°C
• Single 3.3V power supply
• Maximum link length of 10km
• Uncooled 1310nm DFB laser
• Receiver limiting electrical interface
• Duplex LC connector
• Built-in digital diagnostic functions APPLICATIONS
• 10GBASE-LR/LW 10G Ethernet
• 1200-SM-LL-L 10G Fibre Channel
Description
Finisar’s FTLX1471D3BTL 10Gb/s Enhanced Small Form Factor Pluggable SFP+ transceivers are designed for use in 10-
Gigabit Ethernet links up to 10km over Single Mode fiber. They are compliant with SFF-84311 , SFF-84322 and IEEE 802.3ae
10GBASE-LR/LW3 , and 10G Fibre Channel 1200-SM-LL-L4 Digital diagnostics functions are available via a 2-wire serial
interface, as specified in SFF-84725 . The FTLX1471D3BTL is a “limiting module”, i.e., it employs a limiting receiver. Host board
designers using an EDC PHY IC should follow the IC manufacturer’s recommended settings for interoperating the host-board
EDC PHY with a limiting receiver SFP+ module. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC6
, and Finisar Application Note AN-20387 .
Finisar 10G Optical Transceiver Specification
| Fiber Type | SMF |
| Conector | LC |
| Operating Temperature | -40°C to 85°C |
| Distance | 10Km |
| Rate | 10G |
| Power Supply Voltage | 3.3V |
| Application | 10G Ethernet |
| Certificate | ROHS |
Why TOPSTAR ?
1. Our brand: Top-trans, owns a 5000 square meters factory including 20 R&D staffs and more than 200 workers, usd 15 million
revenue per year
2. Specialized in developing and producing the most Hi-tech products like: 25G SFP28/ 40G QSFP+/ 100G
CFP/CFP2/CFP4/QSFP28. Every month sales quantity more than 100,000 pcs .
3. Professional testing equipments: Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ Wave Runner for producing
process. Cisco/ Juniper/ Brocade/ Alcatel-lucent/ Huawei etc. guarantee compatibility.
4. ISO9001/ CE/ FC/ 3C/ ROHS etc. Certified. 10 years Alibaba, 10 years golden supplier .
5. OEM Compatible SFP have 3-year warranty, support 3 months unconditional return, 1 year replacement or repair .
6. Top-Trans transceivers have well used in China Telecom,Saudi Telecom Co. projects/ / Dubai Telecom/Nepal Operator/China
Telecommunication backbone network projects /South American data centre ,
EXFO worldwide optical test solutions etc. and build a long-term cooperation relationship.
