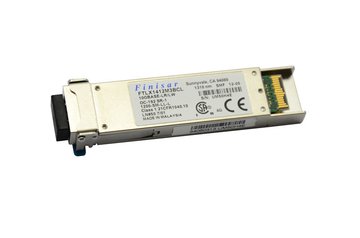

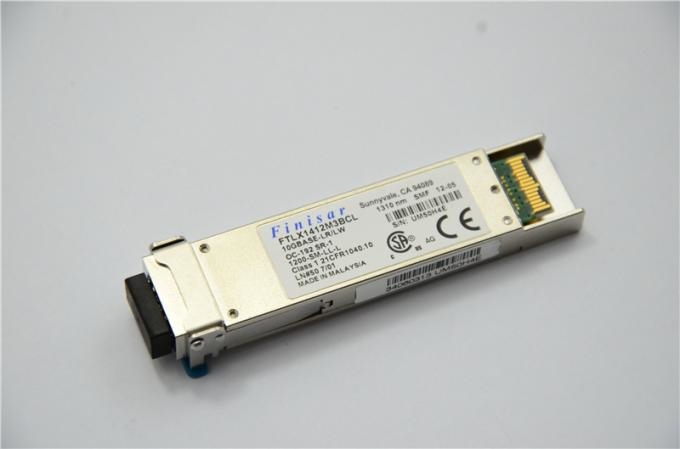

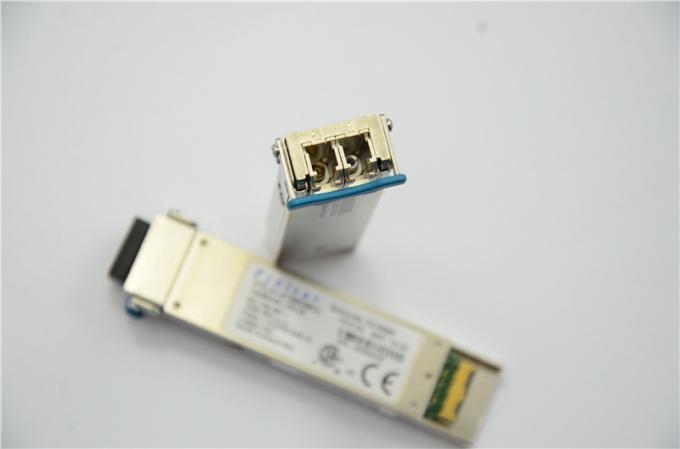

10km XFP Optical Transceiver 10G 1310nm Modules For 10G Ethernet
Optical Module FTLX1412M3BCL Specification
| Application | 10Gb/s |
| Wavelength | 1310 nm |
| Standard Temperture | -5°C to 75°C |
| Distance | 10Km |
| Form Factor | XFP |
| Power dissipation | <2.0W |
| DDM | Yes |
| Optical Extinction Ratio | 6dB |
PRODUCT FEATURES
• Supports 9.95Gb/s to 11.3Gb/s bit rates
• Power dissipation <2.0W • Commercial temperature range: -5°C to 75°C
• RoHS-6 Compliant (lead-free)
• Hot-pluggable XFP footprint
• Single Power supply: 3.3V
• Maximum link length of 10km
• Uncooled 1310nm DFB laser
• No Reference Clock required
• Built-in digital diagnostic functions
• Supports 8.5GFC in CDR-bypass mode
APPLICATIONS
• SONET OC-192 SR-1 SDH STM I-64.1
• 10GBASE-LR/LW 10G Ethernet
• 1200-SM-LL-L 10G Fibre Channel
• 10GBASE-LR/LW with FEC
• 800-SM-LC-L 8.5G Fibre Channel
Finisar’s FTLX1412M3BCL Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source
Agreement (MSA) Specification1 . They comply with SONET OC-192 SR-1, SDH STM I-64.1, 10-Gigabit Ethernet
10GBASELR/LW per IEEE 802.3ae, 10G Fibre Channel 1200-SM-LL-L. In CDR-bypass mode, the Transceiver is compliant to
8.5G Fibre Channel 800-SM-LC-l. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the
XFP MSA. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC3 , and Finisar Application Note AN-20384
