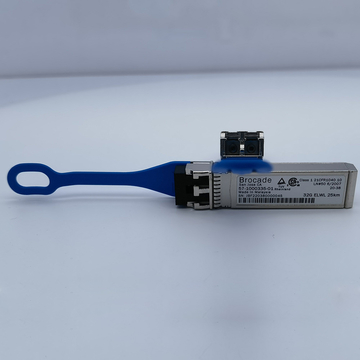

Brocade 57-1000335-01 FC SFP+ Transceiver XBR-000278 32G ELWL 25Km for X6 G610 G620 G630
Brocade 32Gb/s ELWL FC SFP transceiver Specifications
The Brocade® 32G extended long wavelength (ELWL) SFP+, part of the Brocade family of optical transceivers, is optimized for Brocade 32G director and switch products. Together, these optical transceivers provide state-of-the-art performance, while extending data center connectivity over a distance of 25 km. This optical transceiver operates over single-mode fiber and uses an industry-standard LC connector.
Diagnostic features of the Brocade 32G ELWL SFP+ optical transceiver comply with SFF-8472 Rev.12.3, providing real-time monitoring of the following:
• Transmitted optical power
• Received optical power
• Laser bias current
• Temperature
• Supply voltage
Parameters for the 32Gb/s ELWL FC SFP Transceiver Module:
| Performance | Fibre Channel: 8.5Gb/s, 14.025Gb/s, and 28.05Gb/s line speed, full duplex; |
| Media | Hot-pluggable, industry-standard SFP+, LC connector; ELWL 25 km; minimum distance of 10 km required. This transceiver is targeted for long-reach applications with high-power transmitters. Attenuation of ~6 dB is needed for loopback testing |
| Operating Parameters | Transmit (Tx): • Wavelength: 1295 nm to 1310 nm • Average power: +2.0 dBm to +7.0 dBm • RIN: −130 dB/Hz max. • Optical return loss: 26 dB min. • OMA: +2.0 dBm to +7 dBm
Receive (Rx): • Average power: 2 dBm max. • Optical return loss: 26 dB min. • Unstressed sensitivity: 41 µW, −13.9 dBm |
| Size | Width: 14.81 mm (0.58 inches) Height: 11.90 mm (0.47 inches) Depth: 56.50 mm (2.22 inches) |
| Storage Temperature | −40°C to +85°C (−40°F to +185°F) |
| Power Dissipation | 1.5W |

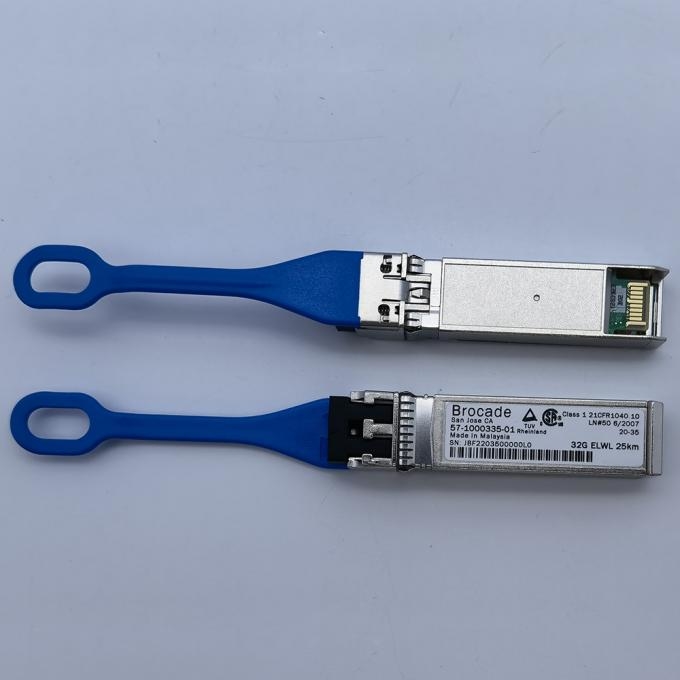

Photo for Brocade 32Gb/s ELWL FC SFP Transceiver
FAQ
Q1. Except for this Brocade 32Gb/s SW FC SFP Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate | Description | Manufacturing Part Number | Brocade Ordering Part Number |
| 4x32G FC QSFP+ | SWL | 57-1000351-01 | XBR-000275 (1-pack) |
| 4x32G FC QSFP+ | SWL | 57-1000490-01 | XBR-000475 (1-pack) |
| 4x32G FC QSFP+ | 2 km | 57-1000480-01 | XBR-000285 (1-pack) |
| 64G FC SFP+ | SWL | 57-1000495-01 | XBR-000462 (1-pack) XBR-000463 (8-pack) |
| 64G FC SFP+ | LWL - 10 km | 57-1000496-01 | XBR-000468 (1-pack) XBR-000469 (8-pack) |
| 64G FC SFP+ | ELWL - 25 km | 57-1000497-01 | XBR-000466 (1-pack) |
| 32G FC SFP+ | SWL | 57-1000333-01 | XBR-000212 (1-pack) XBR-000213 (8-pack) |
| 32G FC SFP+ | SWL | 57-1000485-01 | XBR-000412 (1-pack) XBR-000413 (8-pack) |
| 32G FC SFP+ | LWL - 10 km | 57-1000332-01 | XBR-000238 (1-pack) XBR-000239 (8-pack) |
| 32G FC SFP+ | LWL - 10 km | 57-1000486-01 | XBR-000438 (1-pack) XBR-000439 (8-pack) |
| 32G FC SFP+ | ELWL - 25 km | 57-1000355-01 | XBR-000278 (1-pack) |
| 32G FC SFP+ | ELWL - 25 km | 57-1000494-01 | XBR-000478 (1-pack) |
| 32G FC SFP+ | ELWL - 25 km | 57-1000498-01 | XBR-000479 (1-pack) |
| 16G FC SFP+ | SWL | 57-0000088-01 | XBR-000192 (1-pack) XBR-000193 (8-pack) |
| 16G FC SFP+ | SWL | 57-1000487-01 | XBR-000492 (1-pack) XBR-000493 (8-pack) |
| 16G FC SFP+ | LWL - 10 km | 57-0000089-01 | XBR-000198 (1-pack) XBR-000199 (8-pack) |
| 16G FC SFP+ | LWL - 10 km | 57-1000488-01 | XBR-000498 (1-pack) XBR-000499 (8-pack) |
| 16G FC SFP+ | ELWL - 25 km | 57-1000262-01 | XBR-000258 (1-pack) |
| 16G FC SFP+ | ELWL - 25 km | 57-1000489-01 | XBR-000458 (1-pack) |
| 8G FC SFP+ | SWL | 57-1000117-01 | XBR-000163 (1-pack) XBR-000164 (8-pack) |
| 8G FC SFP+ | LWL - 10 km | 57-1000027-02 | XBR-000153 (1-pack) XBR-000172 (8-pack) |
| 8G FC SFP+ | ELWL - 25 km | 57-0000080-01 | XBR-000174 (1-pack) |
Q2:Is this genuine Brocade Original 32G ELWL FC SFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.
Q3:Does your SFP provide a quality warranty?
A3:For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;
Q4:Can you send this SFP module to my place? and how long does it take?
A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
