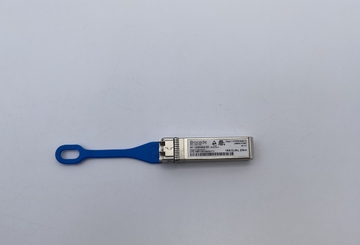

Brocade 57-1000262-01 FC SFP+ Transceiver XBR-000258 SFP+16G ELWL1310nm 25km single mode
Brocade 16Gb/s ELWL FC SFP+ Transceiver Specifications
• 1310 nm DFB laser
• FC-PI-5 compliance for 14.025/8.5/4.25Gb/s operation
• Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers,
providing real-time monitoring of:
– Transmitted optical power
– Received optical power
– Laser bias current
– Temperature
– Supply voltage
• 25 km link lengths at 14.025Gb/s on 9 µm single-mode fiber
• IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
• Compliance with Restriction on Hazardous Substances (RoHS) directive
Highlights
• Provides high system reliability through a rigorous qualification and certification process.
• Enables Brocade switch and director platforms with the highest performance to support business continuity and disaster recovery.
• Eliminates issues related to SFP incompatibility, reducing downtime and support costs.
• Extends Fibre Channel connectivity over distance.
Ordering Part Numbers
• XBR-000258 (1-pack)
Parameters for the 16Gb/s ELWL FC SFP+ Transceiver Module:
| Fiber Type | single mode fiber |
| Connector | LC |
| Transmit&Receive Wavelength (nm) | 1295nm to 1325nm |
| Pull Tab Color | Black |
| Optical return loss | -12 dB min |
| Tx Power | −5.0 dBm to 5.0 dBm |
| Rx Sensitivity | 40 µW, −12.0 dBm |
| Storage Temperature | −40°C to 85°C |
| Power Consumption | 1.1W |
| Single Power Supply | 3.3 V |
| Dimensions | (H x W x D)11.85 x 14.80 x 56.50 mm |

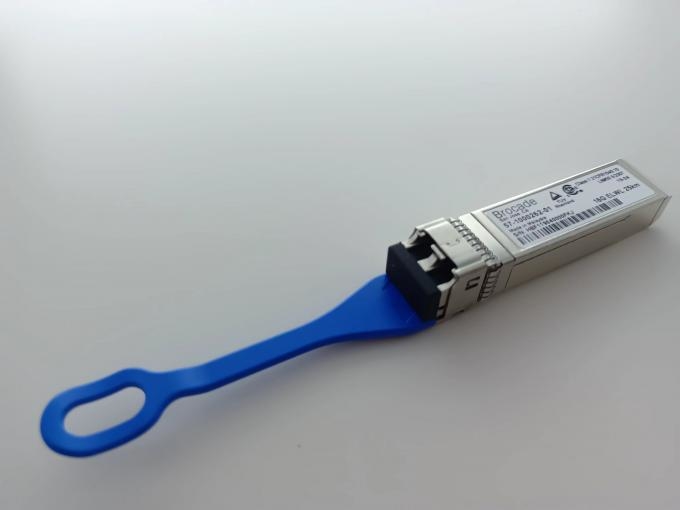

Photo for Brocade 16Gb/s ELWL FC SFP+ Transceiver
FAQ
Q1. Except for this Brocade 16Gb/s ELWL FC SFP+ Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate | Description | Manufacturing Part Number | Brocade Ordering Part Number |
| 4x32G FC QSFP+ | SWL | 57-1000351-01 | XBR-000275 (1-pack) |
| 4x32G FC QSFP+ | SWL | 57-1000490-01 | XBR-000475 (1-pack) |
| 4x32G FC QSFP+ | 2 km | 57-1000480-01 | XBR-000285 (1-pack) |
| 64G FC SFP+ | SWL | 57-1000495-01 | XBR-000462 (1-pack) XBR-000463 (8-pack) |
| 64G FC SFP+ | LWL - 10 km | 57-1000496-01 | XBR-000468 (1-pack) XBR-000469 (8-pack) |
| 64G FC SFP+ | ELWL - 25 km | 57-1000497-01 | XBR-000466 (1-pack) |
| 32G FC SFP+ | SWL | 57-1000333-01 | XBR-000212 (1-pack) XBR-000213 (8-pack) |
| 32G FC SFP+ | SWL | 57-1000485-01 | XBR-000412 (1-pack) XBR-000413 (8-pack) |
| 32G FC SFP+ | LWL - 10 km | 57-1000332-01 | XBR-000238 (1-pack) XBR-000239 (8-pack) |
| 32G FC SFP+ | LWL - 10 km | 57-1000486-01 | XBR-000438 (1-pack) XBR-000439 (8-pack) |
| 32G FC SFP+ | ELWL - 25 km | 57-1000355-01 | XBR-000278 (1-pack) |
| 32G FC SFP+ | ELWL - 25 km | 57-1000494-01 | XBR-000478 (1-pack) |
| 32G FC SFP+ | ELWL - 25 km | 57-1000498-01 | XBR-000479 (1-pack) |
| 16G FC SFP+ | SWL | 57-0000088-01 | XBR-000192 (1-pack) XBR-000193 (8-pack) |
| 16G FC SFP+ | SWL | 57-1000487-01 | XBR-000492 (1-pack) XBR-000493 (8-pack) |
| 16G FC SFP+ | LWL - 10 km | 57-0000089-01 | XBR-000198 (1-pack) XBR-000199 (8-pack) |
| 16G FC SFP+ | LWL - 10 km | 57-1000488-01 | XBR-000498 (1-pack) XBR-000499 (8-pack) |
| 16G FC SFP+ | ELWL - 25 km | 57-1000262-01 | XBR-000258 (1-pack) |
| 16G FC SFP+ | ELWL - 25 km | 57-1000489-01 | XBR-000458 (1-pack) |
| 8G FC SFP+ | SWL | 57-1000117-01 | XBR-000163 (1-pack) XBR-000164 (8-pack) |
| 8G FC SFP+ | LWL - 10 km | 57-1000027-02 | XBR-000153 (1-pack) XBR-000172 (8-pack) |
| 8G FC SFP+ | ELWL - 25 km | 57-0000080-01 | XBR-000174 (1-pack) |
Q2:Is this genuine Brocade Original 16G LWL FC SFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.
Q3:Does your SFP provide a quality warranty?
A3:For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;
Q4:Can you send this SFP module to my place? and how long does it take?
A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
