Brocade 57-1000487-01 16GBASE-SW FC SFP+ Transceiver 16G SW FC duplex LC MMF XBR-000493
Brocade 16Gb/s SWL FC SFP+ Transceiver Specifications
The Brocade® 16Gb/s Short Wavelength (SWL) optical transceiver, part of the Brocade family of Small Form-Factor Pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade 16Gb/s director and switch products. Together, these optical transceivers provide state-ofthe-art performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.
Highlights
• Provides high system reliability through a rigorous qualification and certification process
• Leverages unique design parameters to provide the highest performance with industry-leading Brocade switch and director platforms
• Helps eliminate issues related to SFP incompatibility, reducing downtime and support costs
• Helps eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility
• Optimizes connectivity with Brocade platforms to enable maximum cable distance
Key Features
The Brocade 16Gb/s SWL SFPs are hot-swappable, low-voltage (3.3V) digital diagnostic optical transceivers that support highspeed serial links over multimode optical fiber at signaling rates up to 14.025Gb/s. The transceivers comply with SFP+ mechanical (SFF-8432), optical, and electrical (FC-PI-5) specifications. The Brocade 16Gb/s SWL optical transceiver is a multirate 850-nm SFP that complies with 14.025/8.5/4.25Gb/s Fibre Channel specifications.
Product highlights include the following:
• 850-nm multimode VCSEL transmitter
• FC-PI-5 compliance for 14.025/8.5/4.25Gb/s operation
• Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers
• Industry-standard LC duplex connector
• 100m link lengths at 14.025Gb/s on OM3 fiber
• IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
• Compliance with the Restriction on Hazardous Substances (RoHS) directive
Parameters for the 16Gb/s SWL FC SFP+ Transceiver Module:
| Fiber Type | SMF |
| Connector | LC |
| Transmit&Receive Wavelength (nm) | 850nm |
| Pull Tab Color | Blue |
| Optical return loss | 12 dB max |
| Tx Power | –8 dBm to –1 dBm |
| Rx Sensitivity | 95 µW, –10.2 dBm |
| Spectral width | 0.59 nm |
| Power Consumption | 0.8W |
| Single Power Supply | 3.3 V |
| Dimensions | (H x W x D)12.21 x 14.80 x 56.70 mm |

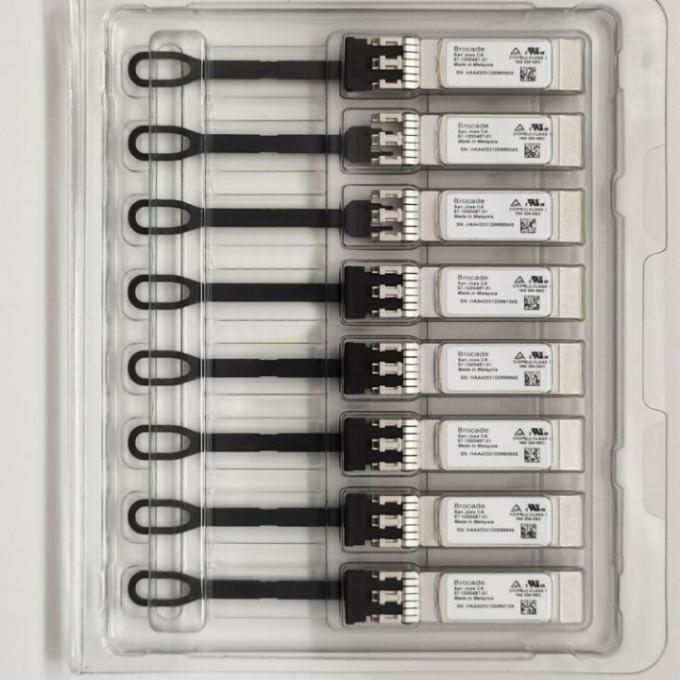

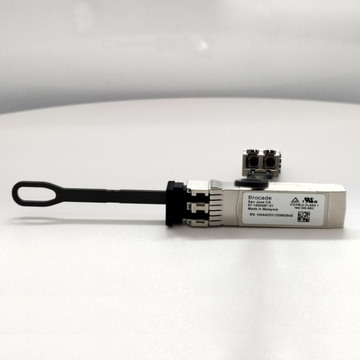

Photo for Brocade 16Gb/s SWL FC SFP+ Transceiver
FAQ
Q1. Except for this Brocade 16Gb/s SWL FC SFP+ Transceiver optical modules, what else Brocade sfp can you offer?
A1: pls check the below form for the Brocade optical module we can offer;
| Data Rate | Description | Manufacturing Part Number | Brocade Ordering Part Number |
| 4x32G FC QSFP+ | SWL | 57-1000351-01 | XBR-000275 (1-pack) |
| 4x32G FC QSFP+ | SWL | 57-1000490-01 | XBR-000475 (1-pack) |
| 4x32G FC QSFP+ | 2 km | 57-1000480-01 | XBR-000285 (1-pack) |
| 64G FC SFP+ | SWL | 57-1000495-01 | XBR-000462 (1-pack) XBR-000463 (8-pack) |
| 64G FC SFP+ | LWL - 10 km | 57-1000496-01 | XBR-000468 (1-pack) XBR-000469 (8-pack) |
| 64G FC SFP+ | ELWL - 25 km | 57-1000497-01 | XBR-000466 (1-pack) |
| 32G FC SFP+ | SWL | 57-1000333-01 | XBR-000212 (1-pack) XBR-000213 (8-pack) |
| 32G FC SFP+ | SWL | 57-1000485-01 | XBR-000412 (1-pack) XBR-000413 (8-pack) |
| 32G FC SFP+ | LWL - 10 km | 57-1000332-01 | XBR-000238 (1-pack) XBR-000239 (8-pack) |
| 32G FC SFP+ | LWL - 10 km | 57-1000486-01 | XBR-000438 (1-pack) XBR-000439 (8-pack) |
| 32G FC SFP+ | ELWL - 25 km | 57-1000355-01 | XBR-000278 (1-pack) |
| 32G FC SFP+ | ELWL - 25 km | 57-1000494-01 | XBR-000478 (1-pack) |
| 32G FC SFP+ | ELWL - 25 km | 57-1000498-01 | XBR-000479 (1-pack) |
| 16G FC SFP+ | SWL | 57-0000088-01 | XBR-000192 (1-pack) XBR-000193 (8-pack) |
| 16G FC SFP+ | SWL | 57-1000487-01 | XBR-000492 (1-pack) XBR-000493 (8-pack) |
| 16G FC SFP+ | LWL - 10 km | 57-0000089-01 | XBR-000198 (1-pack) XBR-000199 (8-pack) |
| 16G FC SFP+ | LWL - 10 km | 57-1000488-01 | XBR-000498 (1-pack) XBR-000499 (8-pack) |
| 16G FC SFP+ | ELWL - 25 km | 57-1000262-01 | XBR-000258 (1-pack) |
| 16G FC SFP+ | ELWL - 25 km | 57-1000489-01 | XBR-000458 (1-pack) |
| 8G FC SFP+ | SWL | 57-1000117-01 | XBR-000163 (1-pack) XBR-000164 (8-pack) |
| 8G FC SFP+ | LWL - 10 km | 57-1000027-02 | XBR-000153 (1-pack) XBR-000172 (8-pack) |
| 8G FC SFP+ | ELWL - 25 km | 57-0000080-01 | XBR-000174 (1-pack) |
Q2:Is this genuine Brocade Original 16G SWL FC SFP+ Transceiver?
A2:Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since year 2006 and never sell fake or copy brand items.
Q3:Does your SFP provide a quality warranty?
A3:For brocade SFP, we offer 1-year warranty. Any quality problem, we will replace for you;
Q4:Can you send this SFP module to my place? and how long does it take?
A4:Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.
The express logistic generally takes 5-12 days to global.
