850NM FC SFP Transceiver 57-1000333-01 XBR-000212 32G FC SFP+ SWL MMF
850NM FC SFP Transceiver 57-1000333-01 XBR-000212 32G FC SFP+ SWL MMF
11%
OFF

850NM FC SFP Transceiver 57-1000333-01 XBR-000212 32G FC SFP+ SWL MMF

 0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.570000033301

{{detail_data.prodInfo.name}}

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

  •
$   168
$ 188 save $ 20
0Reviews
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 168 $ 188 save $ 20
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
Returns:
Read details
Add to Wish list
  • Description

    • ​

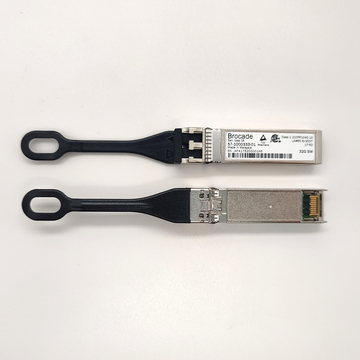

    Brocade Original Transceiver 57-1000333-01 XBR-000212 32G FC SFP+ SWL MMF

    Today’s enterprise data centers are undergoing an infrastructure transformation, requiring higher speeds, greater scalability, and higher levels of performance and reliability to better meet the demands of the business. As speed and performance needs increase, optical transceivers— once considered a generic component of Fibre Channel switching technologies—have become an integral part of overall system design.

    The Brocade® 32Gb/s Short Wavelength (SWL) SFP+, part of the Brocade family of Small Form-Factor Pluggable (SFP) optical transceivers, is optimized to fully leverage Brocade 32Gb/s director and switch products. Together, these optical transceivers provide state-of-the-art performance, helping IT organizations achieve new levels of infrastructure consolidation while expanding the capabilities of their applications and services.

    The Brocade 32Gb/s SWL SFP+ modules are hot-swappable, low voltage (3.3V) digital diagnostic optical transceivers that support high-speed serial links over multimode optical fiber at signalling rates up to 28.05Gb/s. They comply with SFP+ mechanical (SFF-8402), optical, and electrical specifications (FC-PI-6) for LC duplex transceivers. The Brocade 32Gb/s SWL SFP+ is a multi-rate 850-nm SFP that complies with 28.05/14.025/8.5Gb/s Fibre Channel specifications.

    Key Features

    • 850-nm multimode VCSEL transmitter

    • FC-PI-6 compliance for 28.05/14.025/8.5Gb/s operation

    • Diagnostic features per SFF-8472, Diagnostic Monitoring Interface for Optical Transceivers, providing real-time monitoring of the following:

    − Transmitted optical power

    − Received optical power

    − Laser bias current

    − Temperature

    − Supply voltage

    • ​Industry-standard LC duplex connector

    • 100m link lengths at 28.05Gb/s on OM4 fiber

    • IEC 60825-1 Class 1/CDRH Class 1 laser, eye-safe

    • Compliance with the Restriction on Hazardous Substances (RoHS) directive

    • Provides high system reliability through rigorous qualification and certification processes

    • Leverages unique design parameters to provide the highest performance with industry-leading Brocade switch and director platforms to support business continuity and disaster recovery.

    • Helps eliminate issues related to SFP incompatibility, reducing downtime and support costs.

    • Helps eliminate issues resulting from unexpected design changes, providing ongoing end-to-end compatibility.

    • Optimizes connectivity with Brocade platforms to enable maximum cable distance.

    • Extends Fibre Channel connectivity over distance in enterprise environments, enabling high performance business continuity and disaster recovery solutions.

    • Ensures reliable FICON connectivity, interoperability, and architectural adherence between IBM Z mainframes and Brocade SAN products and storage devices

    Protocol

    • 32G Fiber Channel​

    ​

    Parameters

    Data Speed

    FC 4G 8G 16G 32G

    Center Wavelength

    850NM

    Fiber Type

    Multimode

    Transmission

    100M OM4

    Connector

    Dual LC

    Lasers

    VCSEL + PIN

    Tx power

    -6.7 - 1.6 dBm

    Rx sensitivity

    2 dBm max

    Extinction Ratio

    2 dB

    Power Consumption

    1.0W

    Single Power Supply

    3.3 v

    ​​

    FAQ

    • Is this genuine Brocade Original Transceiver?

    Yes, Topstar is the top lead Brocade distributor in China, we sell the brand SFP since 2006 and never sell fake or copy brand items.

    • Does your SFP provide a quality warranty?

    ​

    For brocade SFP, we offer a 1-year warranty.

    • Can you send this SFP module to my place? and how long does it take?

    ​
    Yes, we can provide door to door shipment via DHL, FEDEX, Aramex and UPS etc logistic services.

    The express logistic generally takes 5-12 days to global.

    ​​

    • Do you have regular stock of this Brocade transceiver?

    ​

    Yes, we have regular stock of thousands of pcs, ready for a big volume order

  • Specification
    • Data rate FC 32G
    • Form-Factor SFP+
    • Center Wavelength 850NM
    • Transimission Distance 70M OM3, 100M OM4
    • Temperature 0°C~70°C Commercial
    • Weight 25 grams
    • Warranty 1 Years
    • Support Switches Brocade Gen4, Gen5, Gen6 FC SAN Switches
